British Aircrew Mask PEC Mk12

Mk12 Stores Ref: 6D/TBA | Martin Baker part no: MBEU/60062 (1975)
Mk12 Stores Ref: 6D/6545484 | Martin Baker Part No: MBEU/60062-101 (1982)

The Mk12 PEC was used in the RAF for the Tornado / M.R.C.A.

A Left-Sided PEC for low altitude, it provided connections for: breathing oxygen, anti-G trousers, and communications. It is also fitted with an "Anti-Drowning" Valve.

The layout of conenctions on te base plate are different to all previous mask PECs. Another departure from existing standards was the use of a LEMO communications connector, replacing the previously used Type 626 "NATO" socket; a 7 core cable is used, along with different connector in the PEC base plate.

Manufacturers Resources

Overview of personal equipment connectors, Airmed, WW191 Issue 4, July 1975

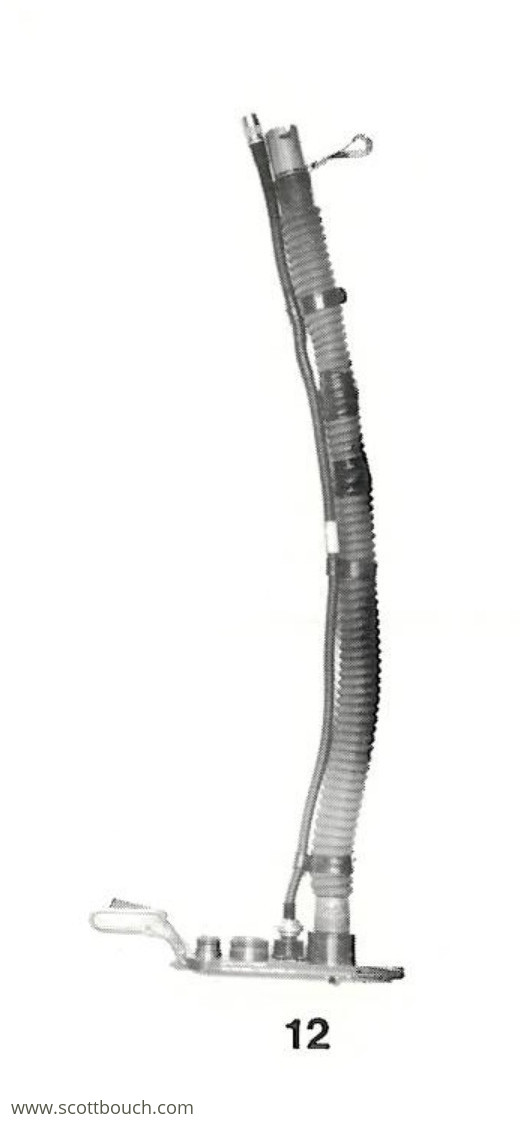

This image shows a Mk12 PEC. The hose depicted here is a "Silenced" type, reducing noise picked up by the mask microphone. Note that in this image from 1975, the AVS bush is present.

This document from refers to Martin Baker part no: MBEU/60062, but as of the time of writing (1975) has no Stores Ref No allocated yet. It also refers to the Tornado as the M.R.C.A.

British Aircrew Mk12 PEC

RAF Resources

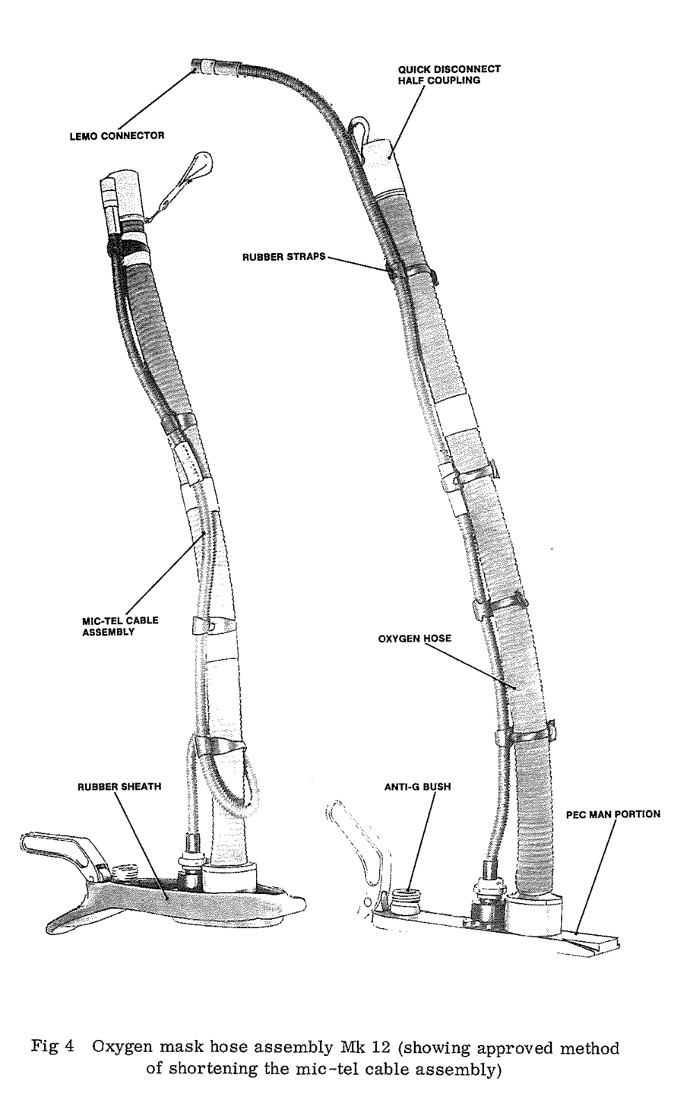

AP108F-0904-1, Chap1-1, Fig3 (1983)

This image shows a Mk12 PEC, of note is the deletion of the AVS bush by 1983.

British Aircrew Mk12 PEC
