Integrated Flight Instrument System
- IFIS
The Integrated Flight Instrument System (IFIS), made by Smiths, is a display system which derives its information from central sensors, which also provide the required inputs for other aircraft systems, such as autopilot, radar, and weapons systems.
The invention of this system cut down on duplicated instrumetns such as gyros, pitot static transducers, etc...

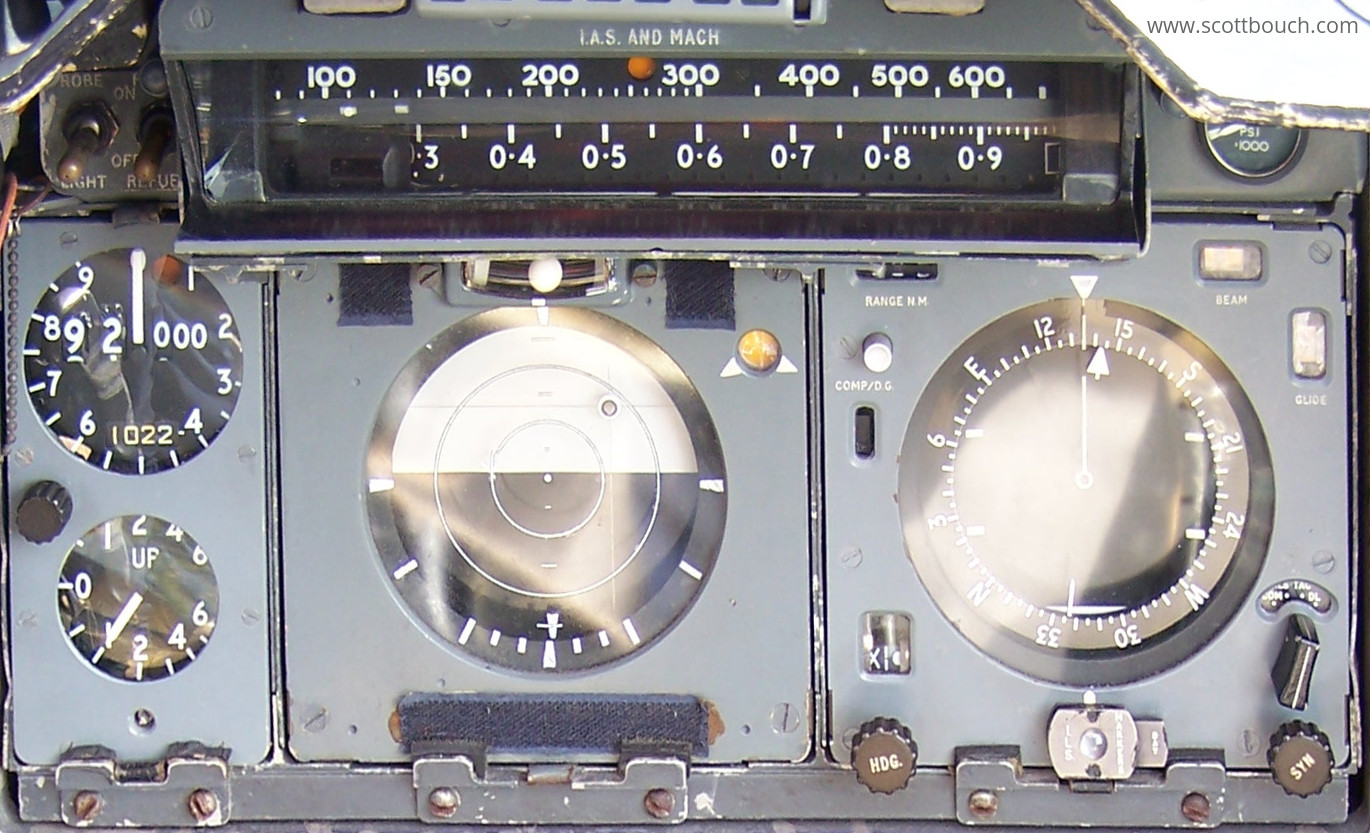

IFIS display of T5 Lightning XS458.
Connection Diagram

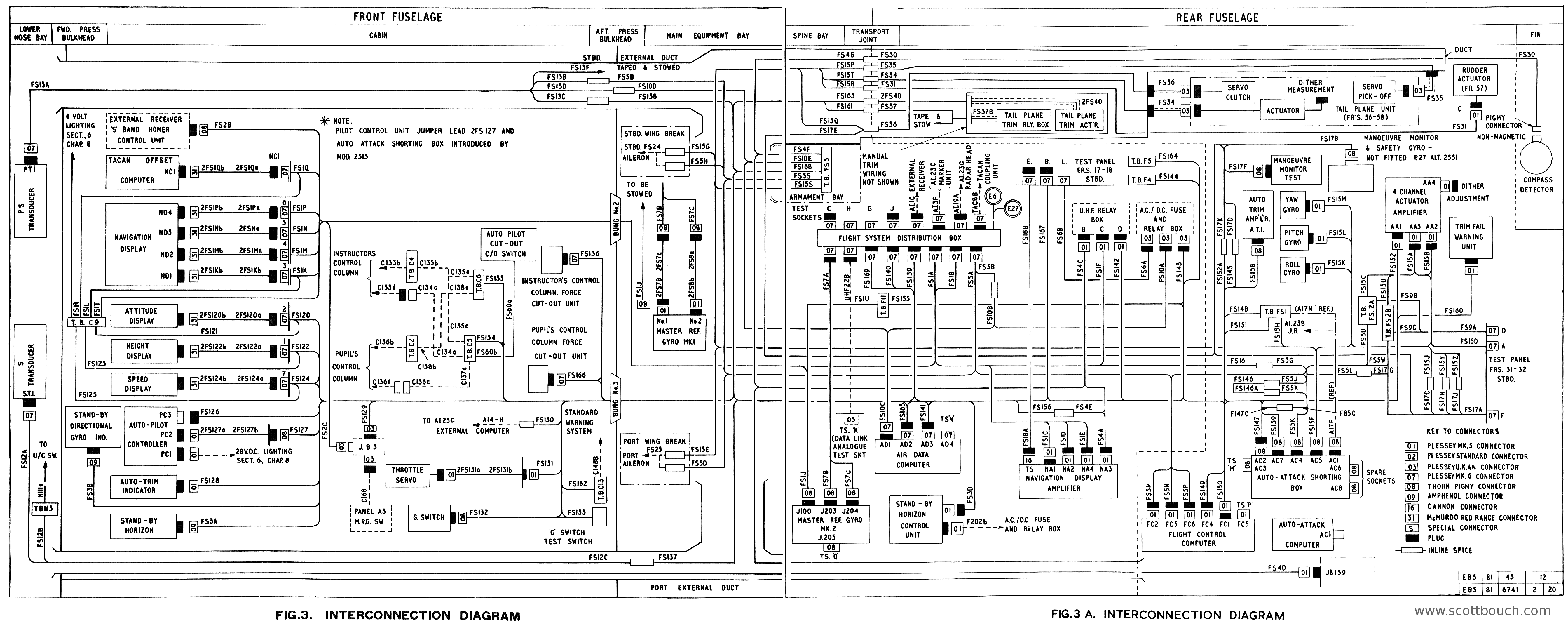

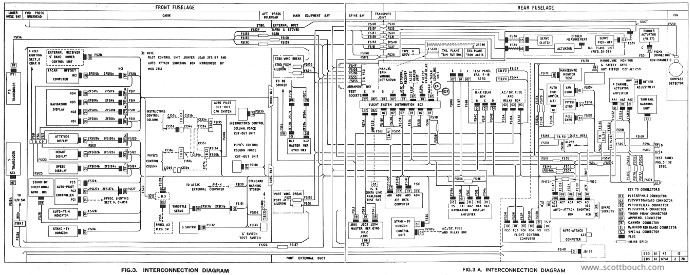

I edited together two diagrams fromm the T5 Lightning "Vol-1" book (AP-101B-1005-1B, Sect-7, Chap-3A, Fig3 and 3a) to make the below diagram. It shows an overview of the system components and their interconnections (note the Air Ministry did make a mistake between cable FS4D and the port external cable duct).
Wanted
I'm trying to find more technical details on these display units, with the hope of eventually simulating them. If nayone reading htis has any information on the internal circuit diagrams, and mechanics, please do get in touch!
In particular I believe the following Air Publications may be of help:
- AP-4685, Vol 1, Part 2 section 5 - Navigation display Type C, Ref 6TD/3650
- AP-4685, Vol 1, Part 2 section 5 - Attitude indicator Type C, Ref 6TD/7287
- AP-4685, Vol 1, Part 2 section 5 - Height and rate of climb display Type B, Ref 6TD/6828
- AP-4685, Vol 1, Part 2 section 5 - Speed display Type C Ref 6TD/898
- AP-4685, Vol 1, Part 2 section 2 - Tacan Offset Computer Type B, Ref 6TD/3221
- AP-112B-0303-1 - Mk1 Navigation Display System Units
- AP-112B-0303-2 - Mk1 Navigation Display System Units
- AP-112B-0303-6 - Mk1 Navigation Display System Units
- AP-112B-0305-1 - Mk5 Flight Compass & Altitude Indicators F1 Series
- AP-112B-0305-2 - Mk5 Flight Compass & Altitude indicator F1 series
- AP-112B-0305-6 - Integrated Flight Instrument Systems Repair & Reconditioning Mk5 Flight Compass & Altitude Indicator F1
- AP-4685 Vol 1
and any others that mey be of use! Thanks!
